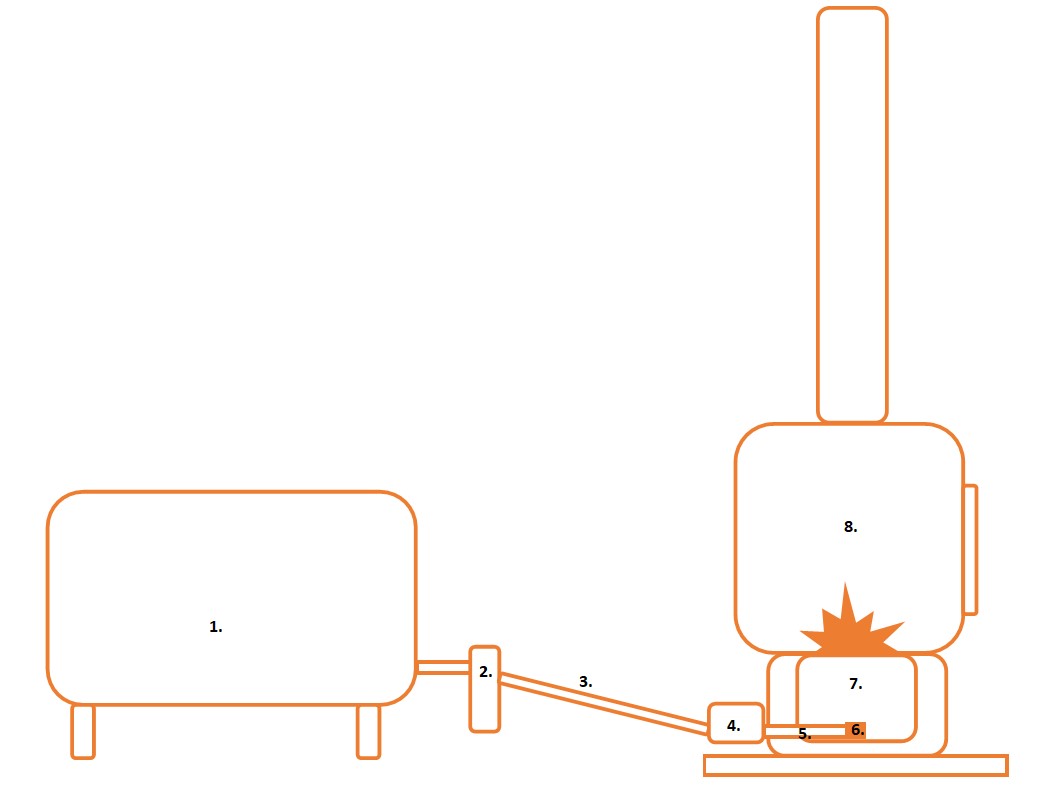

This diagram is a basic description of fuel flow issues. Please click the links for more detailed information:
- Tank: The elevation of the fuel tank could be set too low, the tank could be empty, water may have frozen in the tank or a valve at the tank is closed.
- Tank Filter: The filter could be plugged, frozen or a valve near the filter is closed.
- Fuel Line To Stove: The fuel line could be plugged or frozen.
- Carburetor: The carburetor could have a plugged filter or blockage in the valve stem.
- Fuel Line To Burn Pot: The fuel line to the burn pot could be plugged with coke/scale or be unlevel causing an air-lock.
- Decoker: The decoker could be plugged with coke/scale or is pointing upwards creating an air-lock.
- Burn Pot: The Burn pot could be plugged with coke/scale near the fuel inlet, preventing fuel from flowing.
- Stove: The stove could be unlevel preventing fuel from flowing to the pot.
